Patch panel CAT.6 24 Port , 19 rackmount , Krone type

Patch panel CAT.6 24 Port , 19 rackmount , Krone type&nbsp

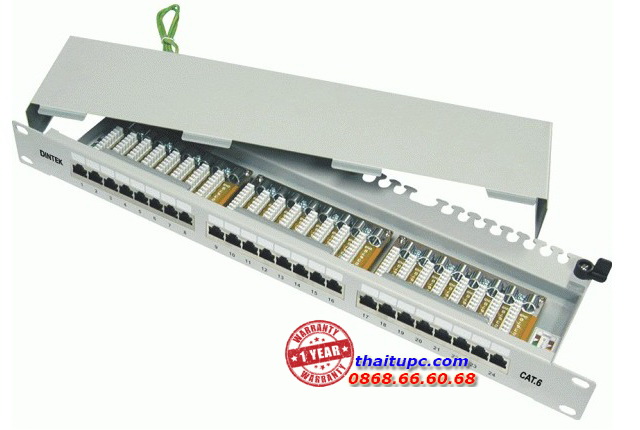

-         Patch panel 24 Port, CAT.6, Fully Shielded 19" rackmount, Krone type.

-         Product Code: 1402-04033

-         Cat.6 19” 110/Krone type fully shielded patch panel 24 ports, 1U size Component level
The DINTEK PowerMAX™ Category 6 solutions are guaranteed to exceed ClassE channel specifications as set down in International standards.

-         Our PowerMAX™ shielded solution comprises Category 6 component compliant patch panels, keystones and patch cords. When combined with DINTEK’s Category 6 FTP S/FTP cable, an end-to-end channel exists that maximises data throughput and provides headroom for all future technologies operating beyond one Gigabit. Combined with other DINTEK PowerMAX™ shielded products, our Category 6 cable is the perfect solution to your voice and data communications needs.

-         Meet all category 6 channel performance requirements specified in ANSI/TIA-568-C.2

-         110 and krone dual type IDC termination

-         100% shielded for complete EMI/RFI protection.

-         19” 24 port patch panel, 1U size & 48 port panel, 2U size.

-         Accept 22~26AWG, stranded or solid wire

-         High durability and reliability.

-         Modular jack meet FCC part 68

-         Wiring: T568A/B

-         Temperature range:

o   Storage: -40 to +700C

o   Operational: -10 to +600C

-         Relative humidity (operational): max. non-condensing 93%

Insulation resistance between any two conductors: 500 MegaOhms min.

Dielectric with standing voltage: 1000V, RMS, 60HZ, 1 MIN.

Contact resistance: 20 MilliOhms max.

Current rating: 1.5 AMPS at 200C

Housing: High-impact, Flame-Retardant plastic, UL94V-0 rated spring wire/ Contact blades.

Contact material: Phosphor bronze alloy

Contact plating: 24Karat hard gold (50 micro-inch gold plating thickness) over 100 micro inch nickel.

Sheel: Brass alloy plated with 100 micro inch nickel.

Plate: SPCC-SD 16G

Total mating force: 800 grams for a 8 wire leads minimum.

Retention: 30lbs min between the jack and plug.

Insertion/Extraction life: 750 cycles minimum.

Number of IDC terminations: 200 minimum.

-         Voice; T1; ISDN

-         10BASE-T (IEEE 802.3)

-         16Mbps Token Ring (IEEE802.5)

-         100VG-AnyLAN (IEEE802.12)

-         100BASE-T Ethernet (IEEE802.3)

-         155/622Mbps 1.2/2.4 Gbps ATM

-         1000Mbps Gigabit

-         550MHz Broadband

 STANDARDS

-         UL Verified

-         ISO/IEC11801 2nd edition

-         ANSI/TIA Standard 568-C.2

-         CENELEC EN 50173

-         Sản xuất tại Taiwan.
